Boston Manor Station, Brentford

  • Boston Manor Road, Brentford, Middlesex, TW8 9LQ
  • Designed by: Charles Holden and Charles Hutton
  • Built: 1932 - 1934
  • Tags: Art Deco, Transport

Standing on Boston Manor Road in Brentford, close to Junction 4 of the M4 Motorway in London, Boston Manor Station is a station serving the Piccadilly Line on London Underground. In the early 1930s public transport in London was operated by a multitude of separate companies. This saw large companies such as the Underground Electric Railways Company of London, which operated a number of underground lines including the Northern and Piccadilly lines, providing services alongside numerous smaller companies.

In 1933 the London Passenger Transport Act sought to consolidate public transport services within the designated 'London Passenger Transport Area' under the auspices of the London Passenger Transport Board (London Transport). Underground and over-ground lines, buses, coaches and trams were combined, although separate 'brands' were created. For example inner London buses were red (such as the Routemaster) whilst in the outer areas 'Green Line' buses were dark green.

From the outset London Transport was managed by Frank Pick (1878-1941). Pick was an enlightened leader for the company, with an appreciation for good design. Previously, as Managing Director of the Underground Electric Railways Company of London he had commissioned designer Edward Johnston (1872-1944) to design a typography and Underground 'roundel' symbol for the company. Frank Pick had also commissioned British architect Charles Holden to work on designs for the Underground Company.

Charles Holden was born in Bolton on 12 May 1875. He entered architectural practice in 1892 and joined the practice of Henry Percy Adams (1865-1930) in 1899. In 1913 architect Lionel Godfrey Pearson (1879-1953) joined and the practice became the Adams, Holden and Pearson Partnership.

Initially Holden's commissions involved works to station facades supervised by Stanley Heaps (1880-1962), head of the Underground Group's Architects Office. Later Holden's commissions extended to complete stations; in 1925 Pick commissioned Charles Holden to design the seven stations of the Underground Electric Railways Company of London's Northern Line 1926 southern extension to Morden.

These new Northern Line stations adopted a modern style which marked the beginning of Holden's influence over London Underground design. But it was Holden's plans for Sudbury Town Station that set the mould for London Underground design up until the Second World War by introducing a bold, new style for London Underground.

On the formation of London Transport Frank Pick and Charles Holden continued to work together, building stations as suburban London expanded rapidly. In 1933 the Piccadilly Line was extended from Northfield to Hounslow West. As part of the works Boston Manor Station was rebuilt between 1932 and 1934. The existing 1883 station at platform level remained in-situ. A new building above, at street level was built.

Boston Manor Station was designed by Charles Holden and his assistant Charles Hutton (1905-1995). Charles Hutton worked not only on Boston Manor Station, but also Arnos Grove Station - one of the network's finest Modernist stations - and Osterley Station. As Holden became increasingly busy with work he delegated design work to assistants within the partnership and also to other practices, a solution not entirely to Frank Pick's satisfaction.

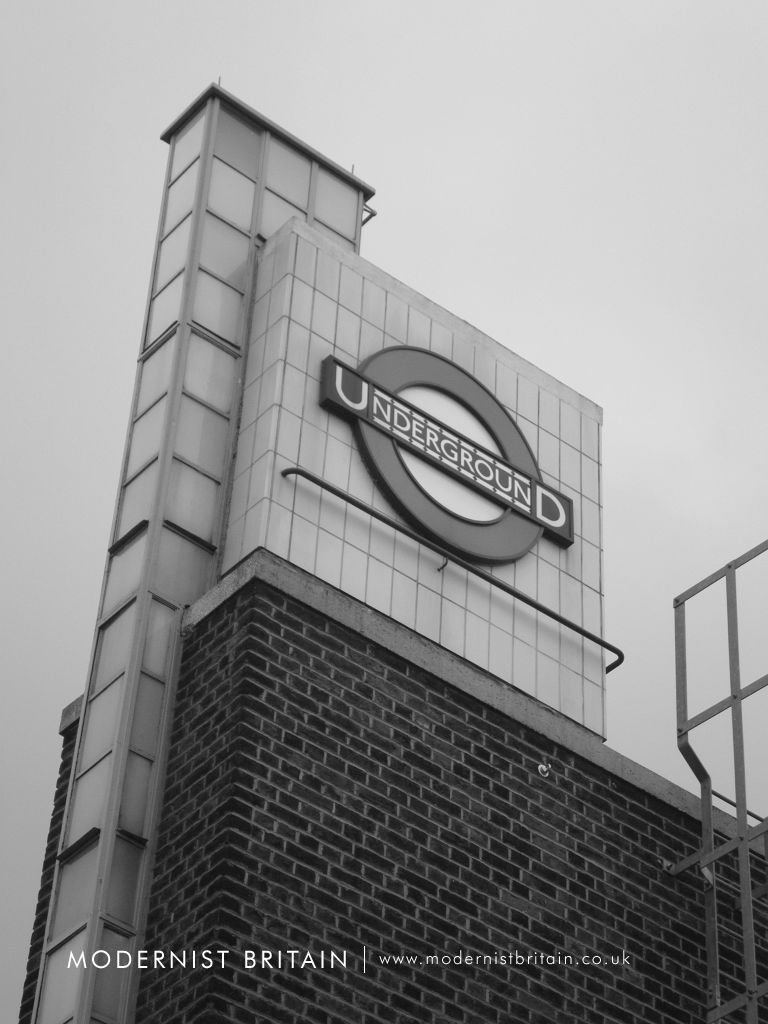

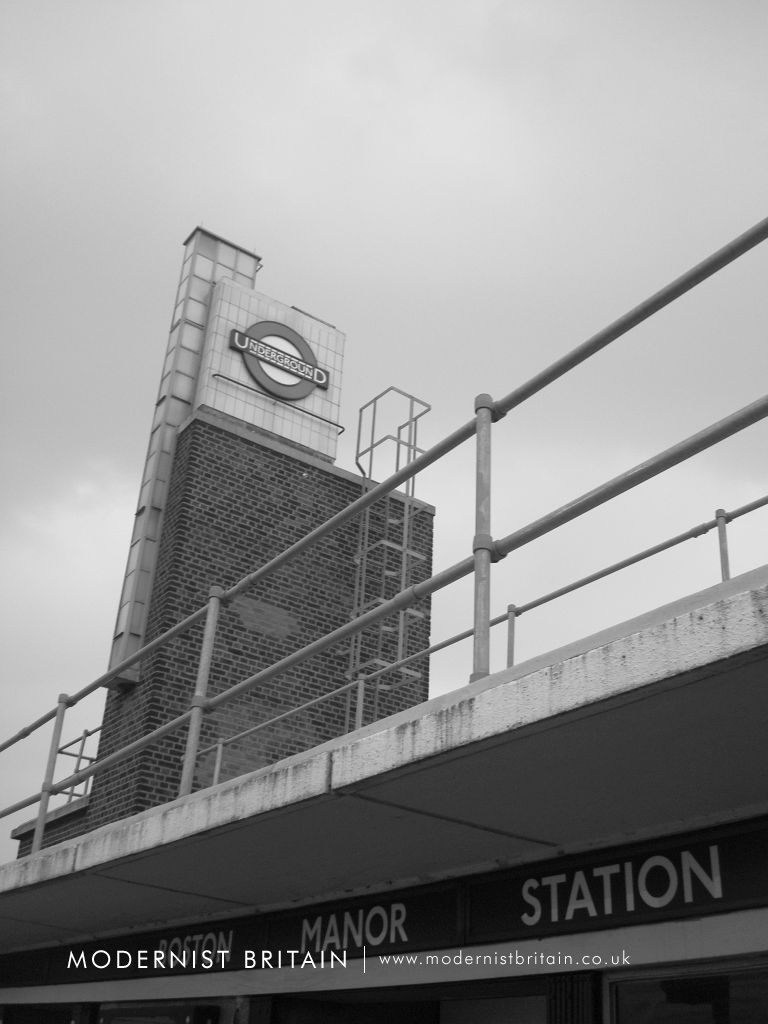

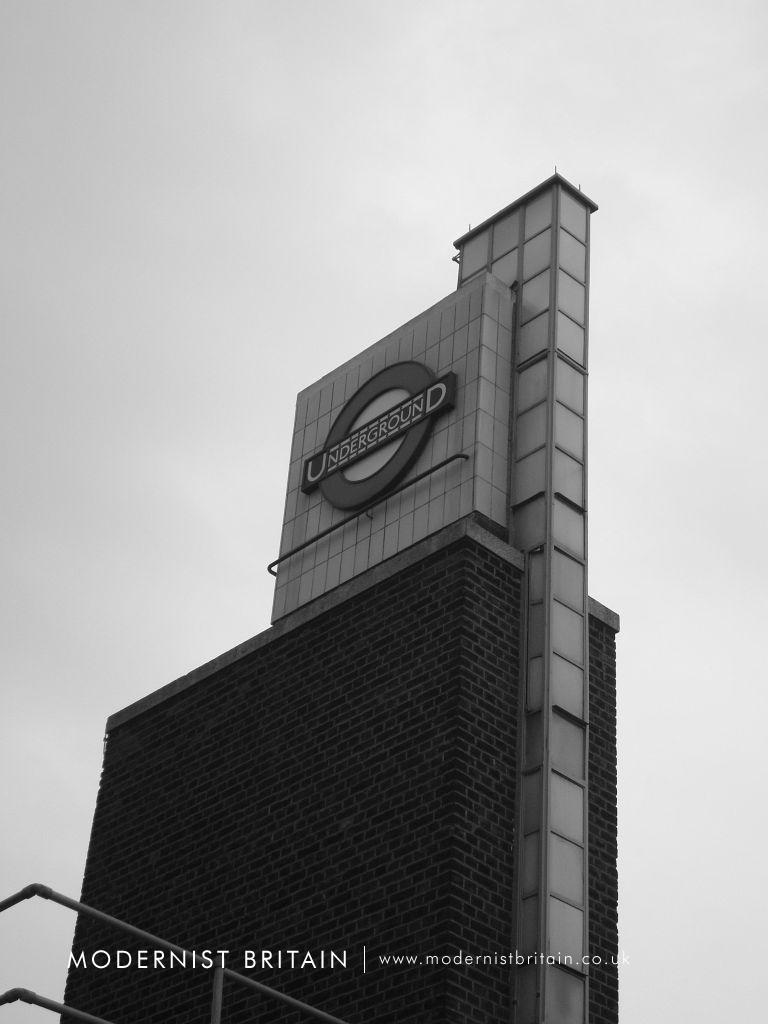

The design of Boston Manor Station is dominated by a tall, slender brick tower surmounted by a smaller faience-clad 'fin' carrying the London Underground roundel. A projecting, vertical strip of glass bricks, with integrated lighting, is formed along the leading edge of the tower.

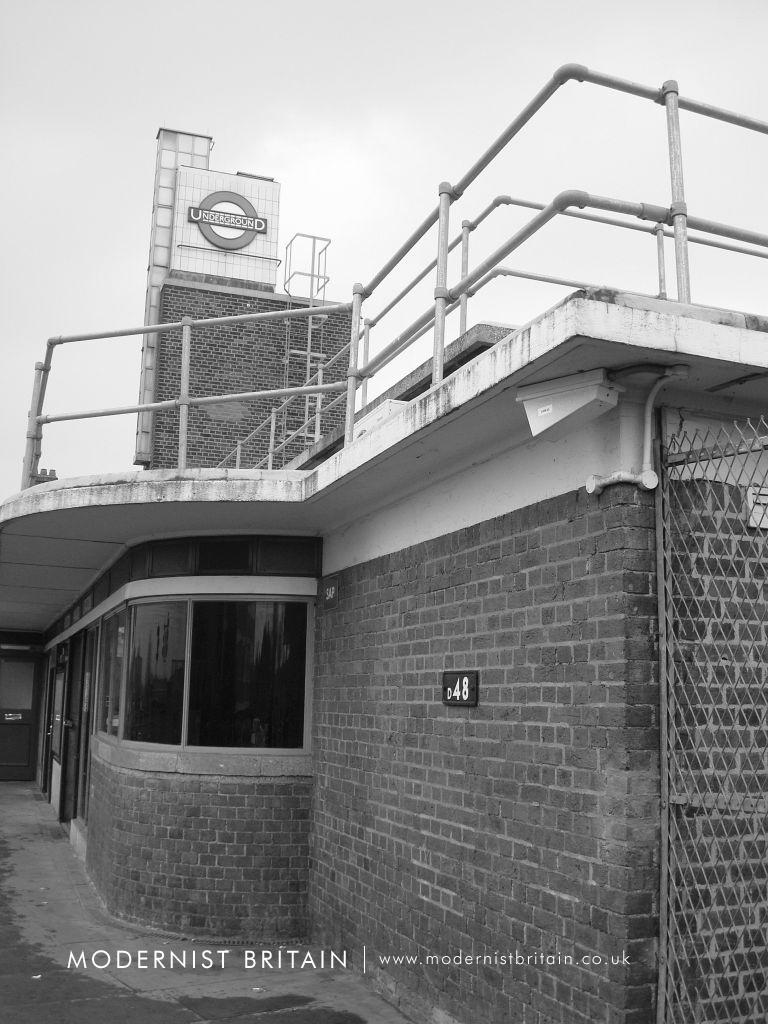

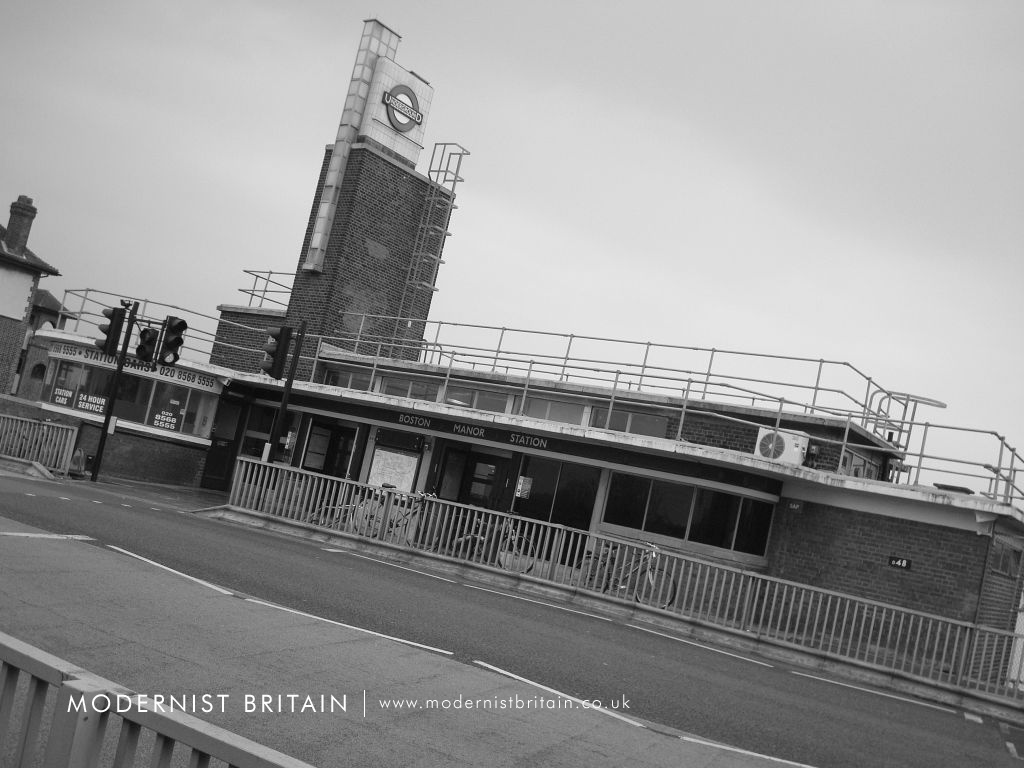

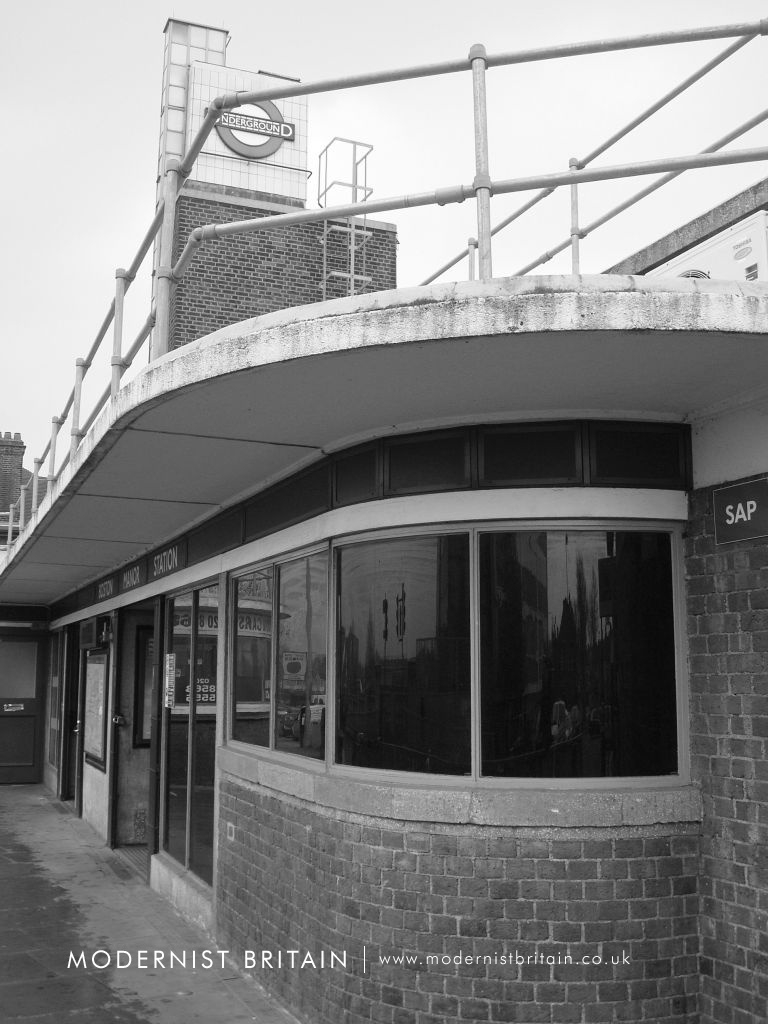

At street level the building is a single storey structure with two double-door entrances. To the left stands a drum-shaped kiosk. To the right, the street frontage is dominated by large glazed windows, terminating at the right-hand side with a curved, glazed wall. Above, the station name is spelt out across a 'ribbon' of glass, set beneath a projecting concrete roof. Behind, the ticket hall rises within a half-height space, lit by clerestorey windows beneath a further projecting concrete roof.

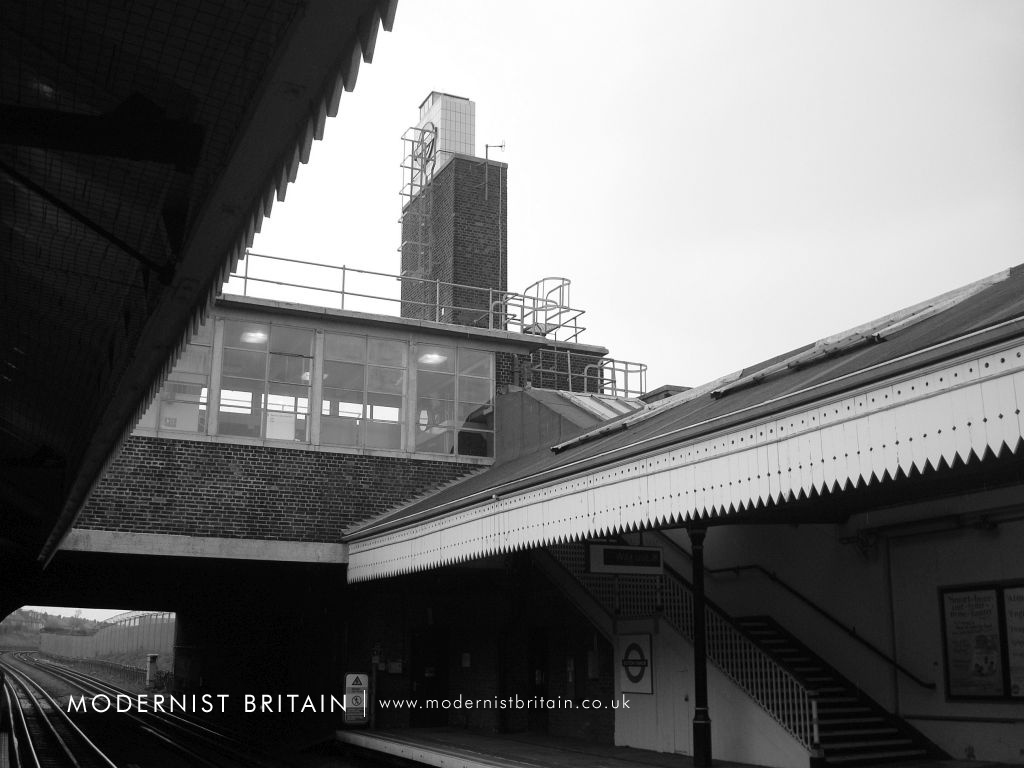

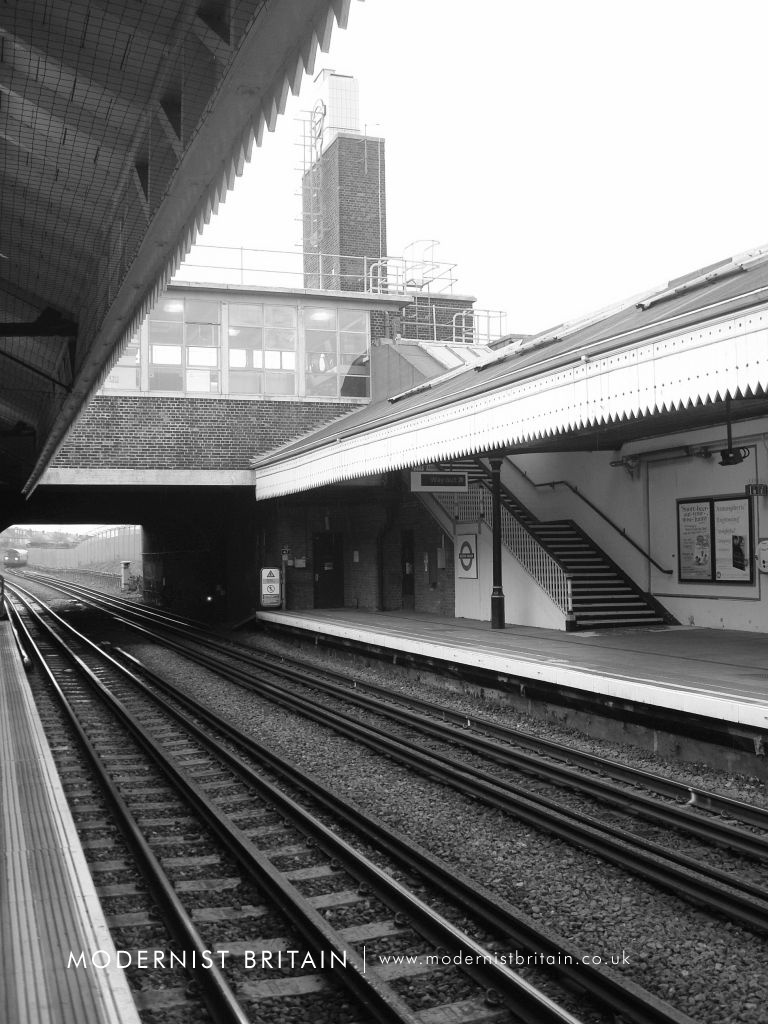

Unlike many of the 'new' stations on the expanded Piccadilly Line, Boston Manor Station retained its original 1883 Victorian platform and structures, providing a stark contrast compared to the Modernist entrance and ticket hall. At platform level the structure comprises cast-iron columns and cast-iron trusses supporting a part-glazed timber roof over each platform.

The building was awarded Grade II-listed status on 21 March 2002.

References

  • Lawrence, David (2008) Bright Underground Spaces - The Railway Stations of Charles Holden Harrow Weald: Capital Transport Publishing
